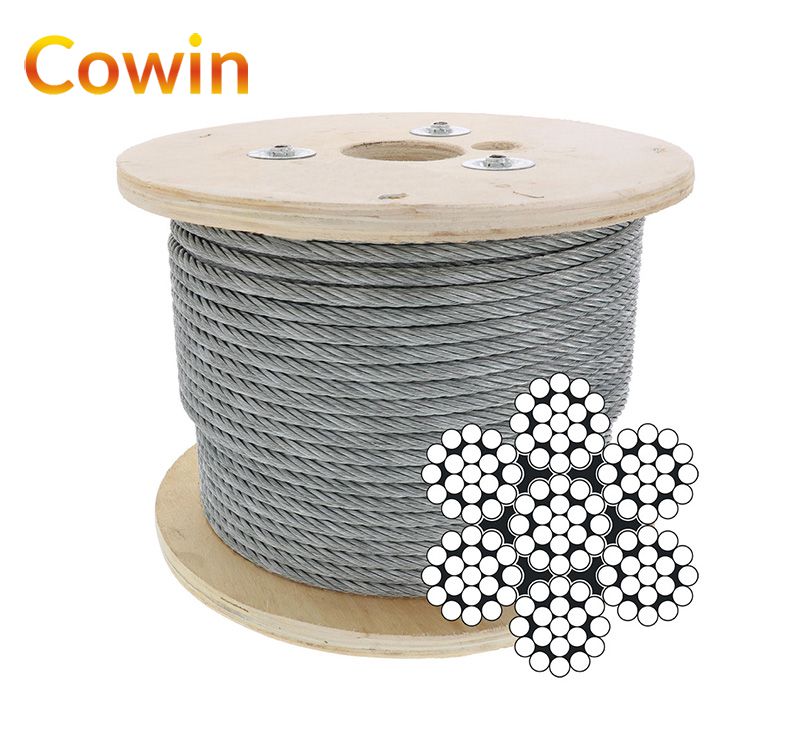

7x19 Stainless Steel Wire Rope ( AISI 304, 316)
7x19 AIS304,I316 stainless steel wire rope is used for a wide range of applications. Extremely flexible when compared to both 1x19 and 7x7, the 7x19 construction is often used where a flexible stainless steel wire rope is particularly required. 7x19 performs well for running applications. Used extensively throughout the marine industry as well as for general engineering applications, 7x19’s excellent flexibility make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:
I).Basic Information
7x19 AIS304,I316 stainless steel wire rope is used for a wide range of applications. Extremely flexible when compared to both 1x19 and 7x7, the 7x19 construction is often used where a flexible stainless steel wire rope is particularly required. 7x19 performs well for running applications. Used extensively throughout the marine industry as well as for general engineering applications, 7x19’s excellent flexibility make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:
Applications
· Control cables
· Guardrail
· Standing rigging
· Running rigging
· Steering cable
· Marine/Saltwater environment
· Sewage treatment works
· Wire rope slings
· Davit ropes

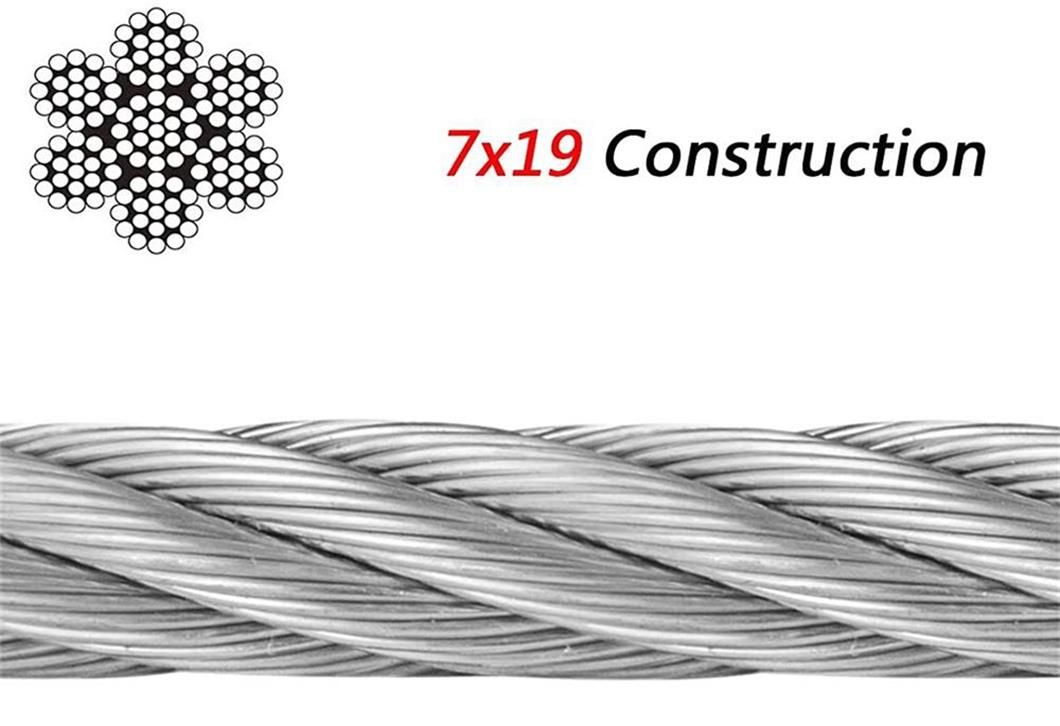

7x19 Stainlesss Steel Wire Rope (AISI304, 316)
Dia:1.2mm-30mm
Lay: RHOL, LHOL, RHLL, LHLL
Breaking Load
| Diameter | Approx Weight | Min Breaking Load (KN) | ||
| mm | Kg/100m | 1570Mpa | 1770 Mpa | 1960 Mpa |
| 1.2 | 0.56 | 0.85 | 0.94 | |
| 1.4 | 0.77 | 1.15 | 1.28 | |
| 1.6 | 1.00 | 1.90 | 1.67 | |
| 1.8 | 1.27 | 2.35 | 2.11 | |
| 2.0 | 1.57 | 5.29 | 2.60 | |
| 3.0 | 3.52 | 9.40 | 5.86 | |
| 4.0 | 6.26 | 14.69 | 10.41 | |
| 5.0 | 9.79 | 13.03 | 21.16 | 16.27 |
| 6.0 | 14.1 | 18.77 | 37.62 | 23.43 |
| 8.0 | 25.0 | 33.37 | 58.78 | |
| 10.0 | 39.1 | 52.14 | 84.64 | |
| 12.0 | 56.4 | 75.08 | 99.33 | |
| 13.0 | 66.1 | 88.11 | 115 | |
| 14.0 | 76.7 | 102 | ||
| 16.0 | 100.2 | 133 | ||
| 18.0 | 127.0 | 169 | ||
| 20.0 | 157.0 | 209 | ||
| 22.0 | 189.0 | 252 | ||
| 24.0 | 225.0 | 300 | ||
| 26.0 | 265.0 | 352 | ||
| 28.0 | 307.0 | 409 | ||
II).How to Produce it

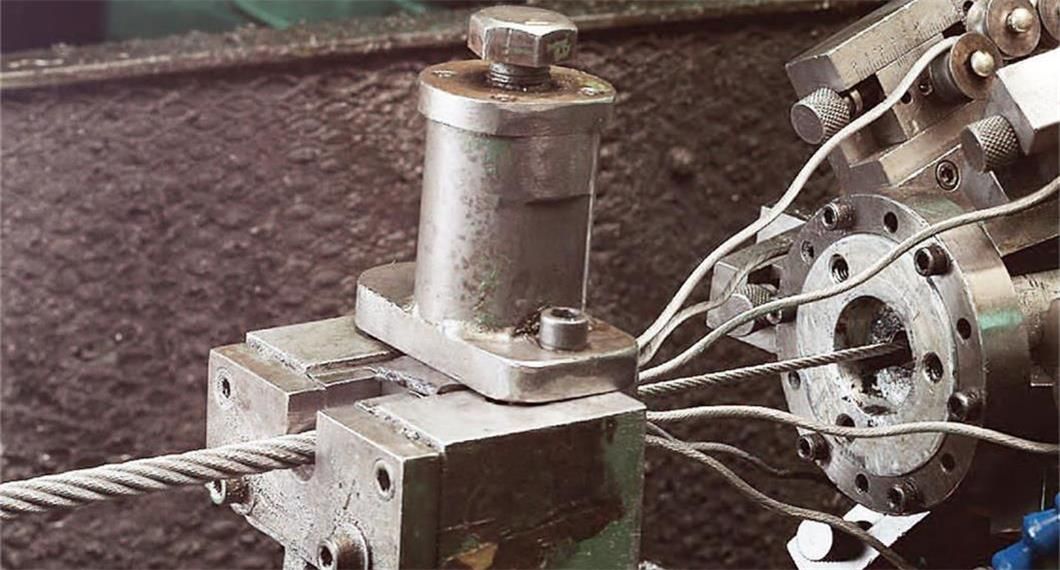

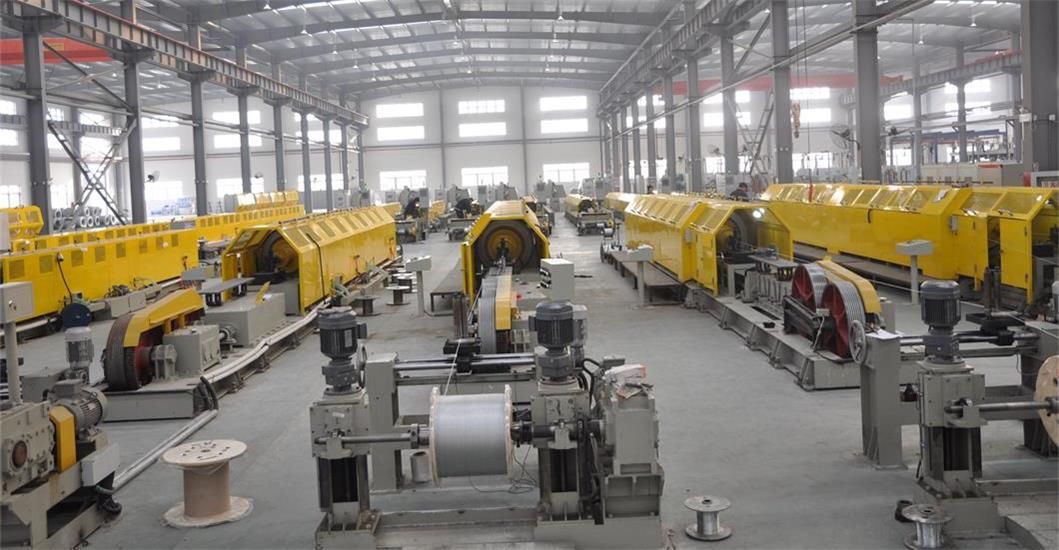

1. Drawing Wire------------------2.get the right size wire for rope----------------3.Twist the wire to get strand-----------4.Twist the strand to get the wire rope--------------.5 winding the wire rope-------------6.Pack them
III).How to make sure the quality
1.Standardized production operation

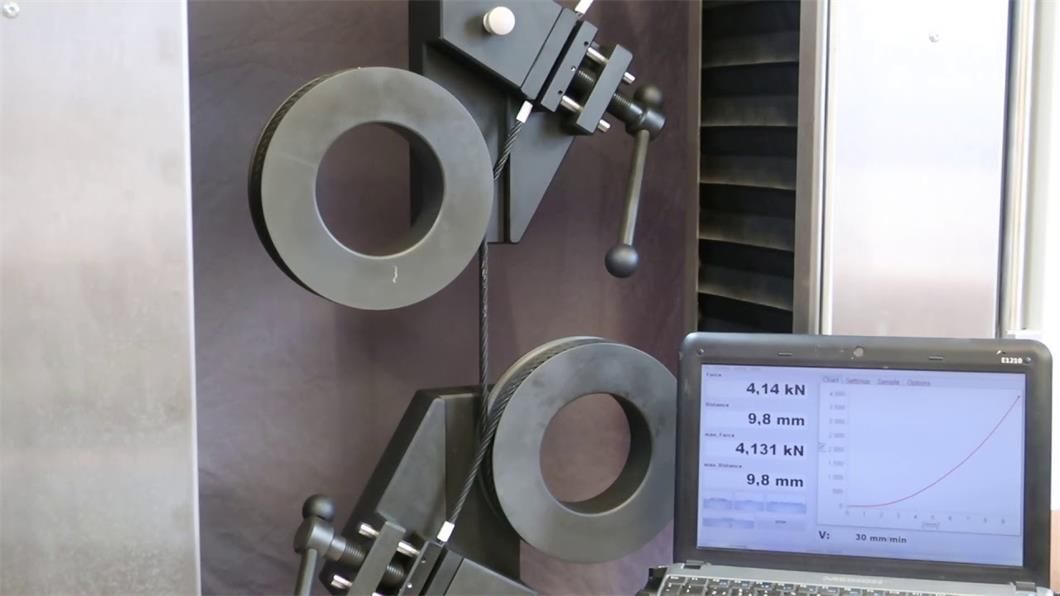

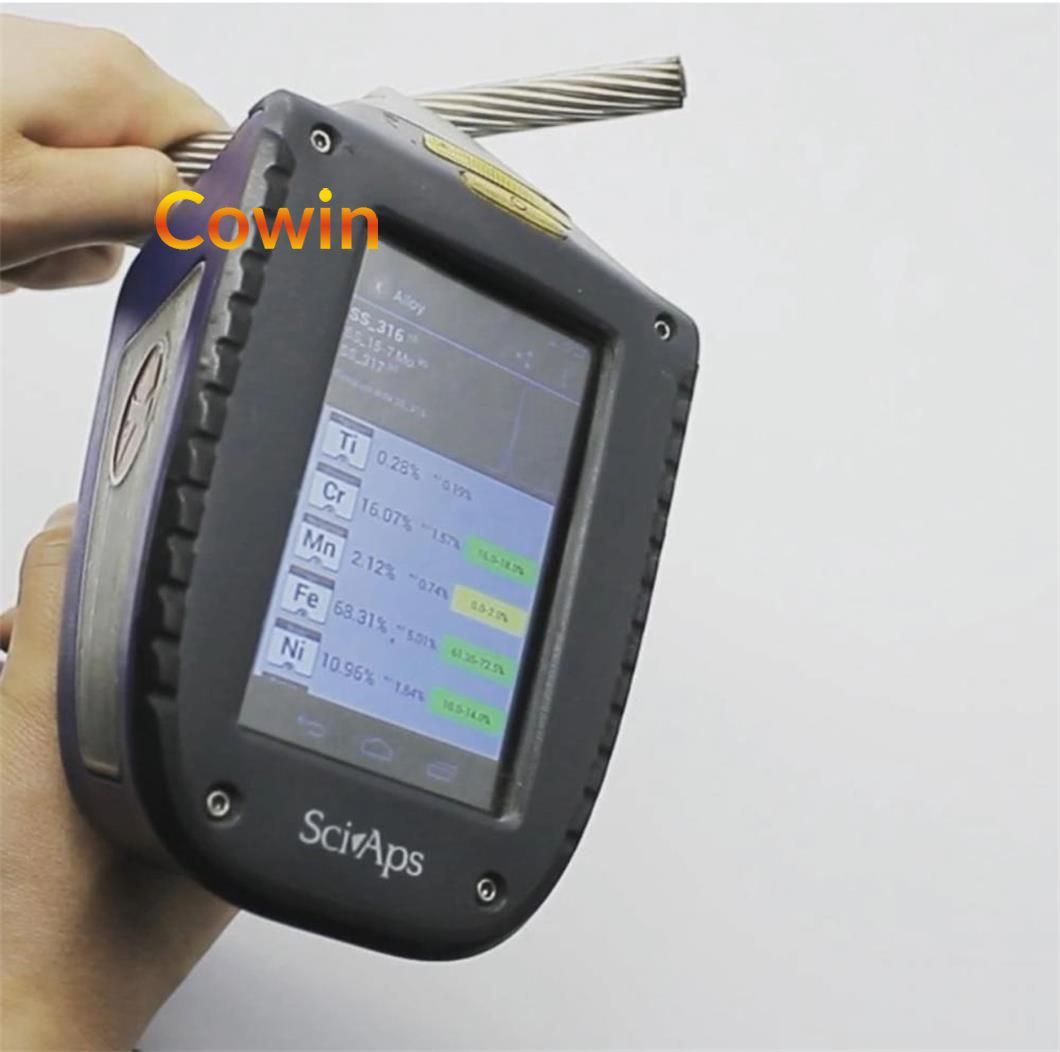

2.Test diameter, chemical composition and breaking load by our mill, supply mill test report
3..Accept the third party inspection ( SGS,TUV, or other institution designated by clients

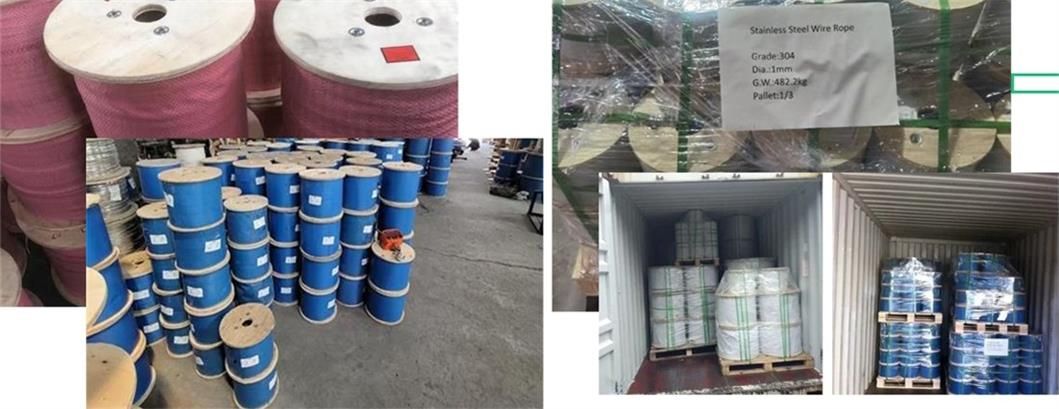

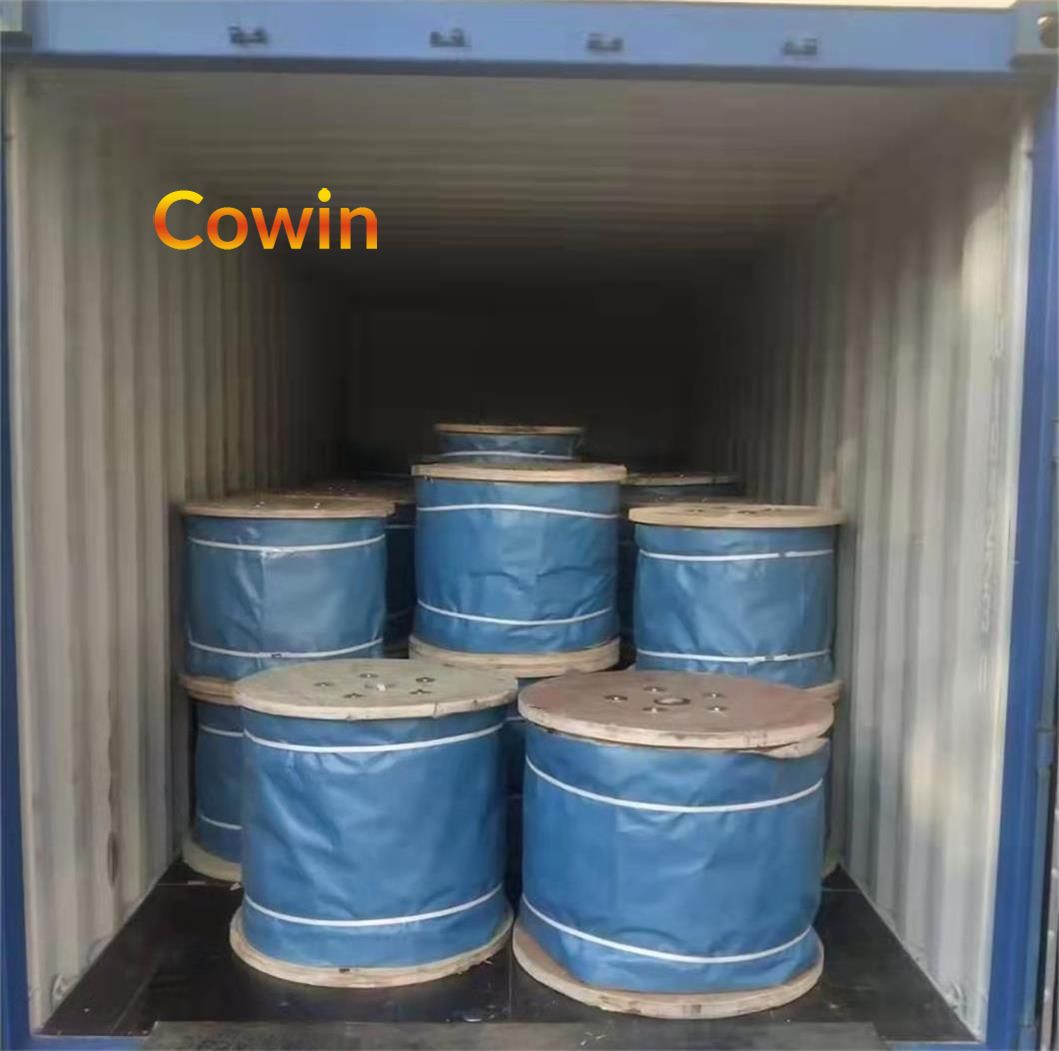

IV).Package and Load
V).How to Handle complains
1. before delivery, we do strict inspection and test to avoid unquality goods out from our factory
2. if quality problems occur when customer receive the goods
firstly, we will check where the quality happen, it is in our factory, in the transporation, or the wrong operation by client
secondly, if happend in our factory, we will compensate all the lost , if in the transporation, we will strengthen our package in the next shipment, and compenate the loss of client, and if by clients' worng operation,we will give our right operation suggestion and also give our adequate compensation in the next order
In one word, we try to do every process well, avoid any problem occurs, and don't let our clients suffer any loss
