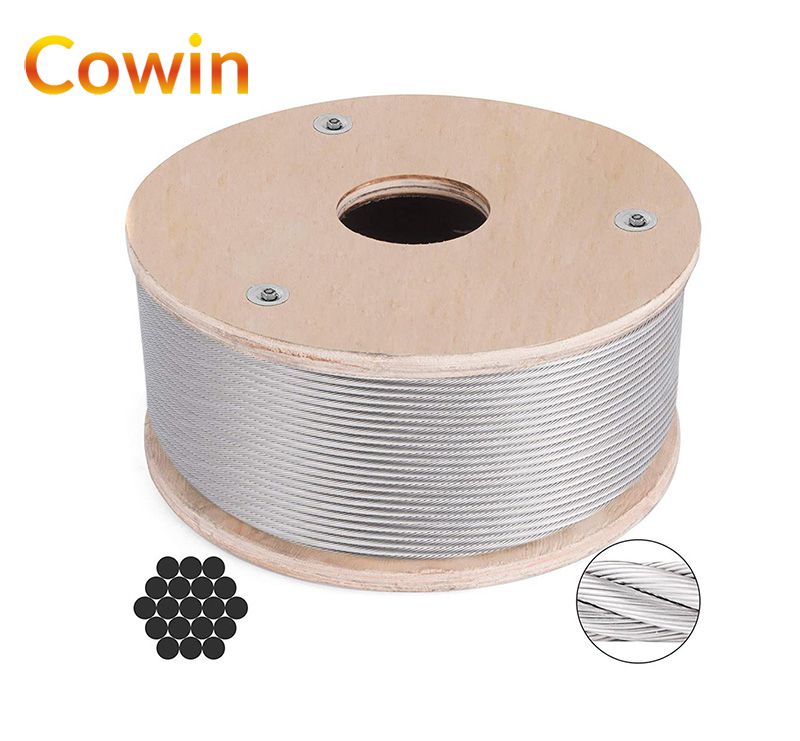

1X19 Stainless Steel Wire Rope (AISI 304, 316)
1x19 AISI304,316 stainless steel strand is a very popular stainless steel construction. 1x19's excellent breaking load and low stretch characteristics along with its’ aesthetic appeal make it a favourite for marine, structural and balustrade applications.
I).Basic Information
1x19 AISI304,316 stainless steel strand is a very popular stainless steel construction. 1x19's excellent breaking load and low stretch characteristics along with its' aesthetic appeal make it a favourite for marine, structural and balustrade applications.
The 1x19 construction stainless steel wire rope is stronger than other types of stainless steel cable and has less stretch. This also means it is non flexible.
1x19 stainless steel wire rope is often used in yacht and sail boat rigging, architectural structural rigging and balustrading..
1x9 Stainlesss Steel Wire Rope (AISI304, 316)
Dia: 0.8mm-16mm
Lay: R.H.L.L, L.H.L.L
Breaking Load
| Diameter | Approx Weight | Min Breaking Load (KN) | ||
| mm | Kg/100m | 1570Mpa | 1770 Mpa | 1960 Mpa |
| 0.8 | 0.33 | 0.60 | 0.66 | |
| 1.0 | 0.51 | 0.93 | 1.03 | |
| 1.2 | 0.73 | 1.34 | 1.48 | |
| 1.4 | 1.00 | 1.82 | 2.01 | |
| 1.6 | 1.31 | 2.11 | 2.38 | 2.63 |
| 1.8 | 1.65 | 2.67 | 3.01 | 3.33 |
| 2.0 | 2.04 | 3.30 | 3.72 | 4.12 |
| 3.0 | 4.59 | 7.42 | 8.37 | |
| 4.0 | 8.16 | 13.2 | 14.9 | |
| 5.0 | 12.77 | 20.6 | ||
| 6.0 | 18.33 | 29.7 | ||
| 8.0 | 32.65 | 52.8 | ||
| 10.0 | 51.00 | 82.5 | ||
| 12.0 | 73.4 | 119 | ||
| 13.0 | 86.2 | 139 | ||
| 14.0 | 100 | 162 | ||
| 16.0 | 131 | 211 | ||
II).How to Produce it

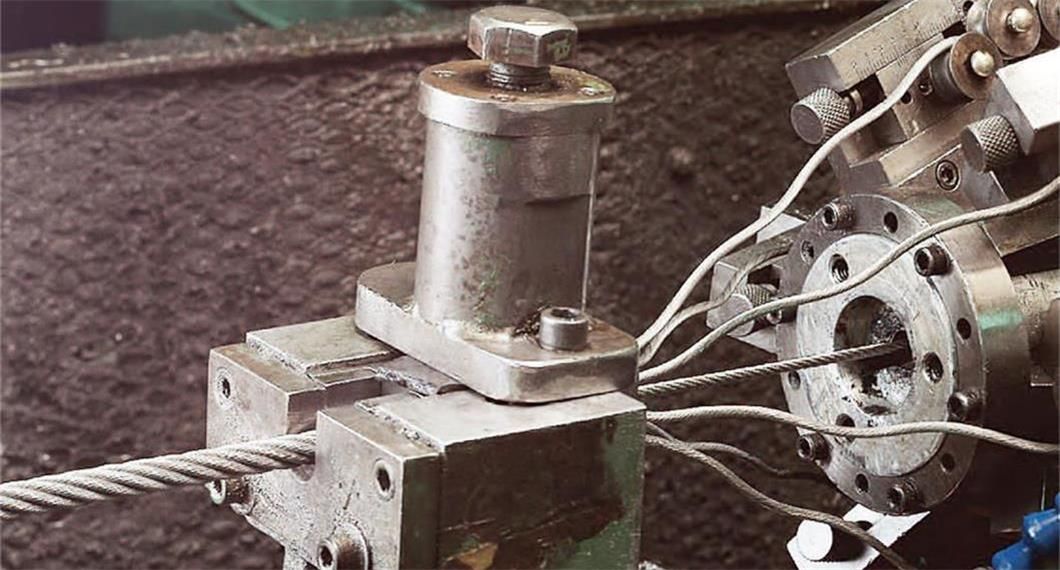

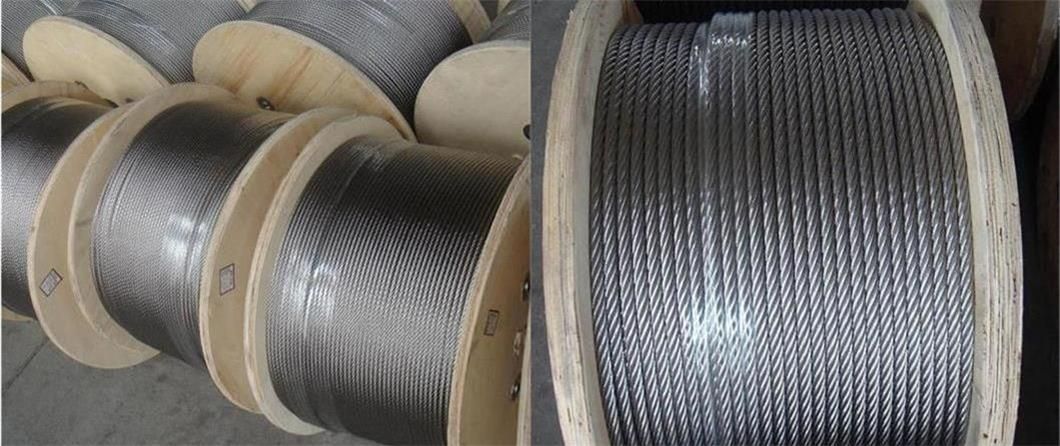

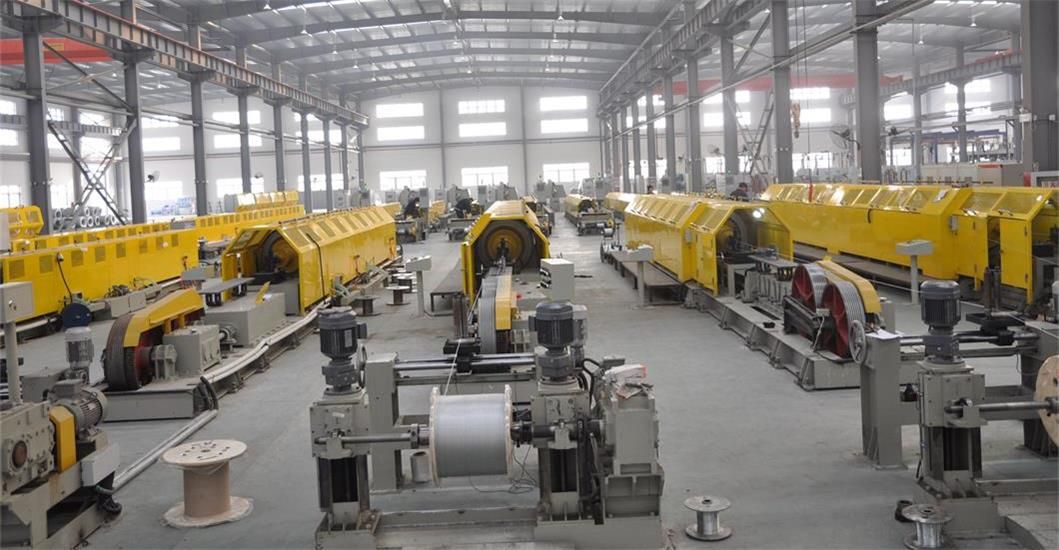

1. Drawing Wire------------------2.get the right size wire for rope----------------3.Twist the wire to get strand-----------4.Twist the strand to get the wire rope--------------.5 winding the wire rope-------------6.Pack them
III).How to make sure the quality
1.Standardized production operation

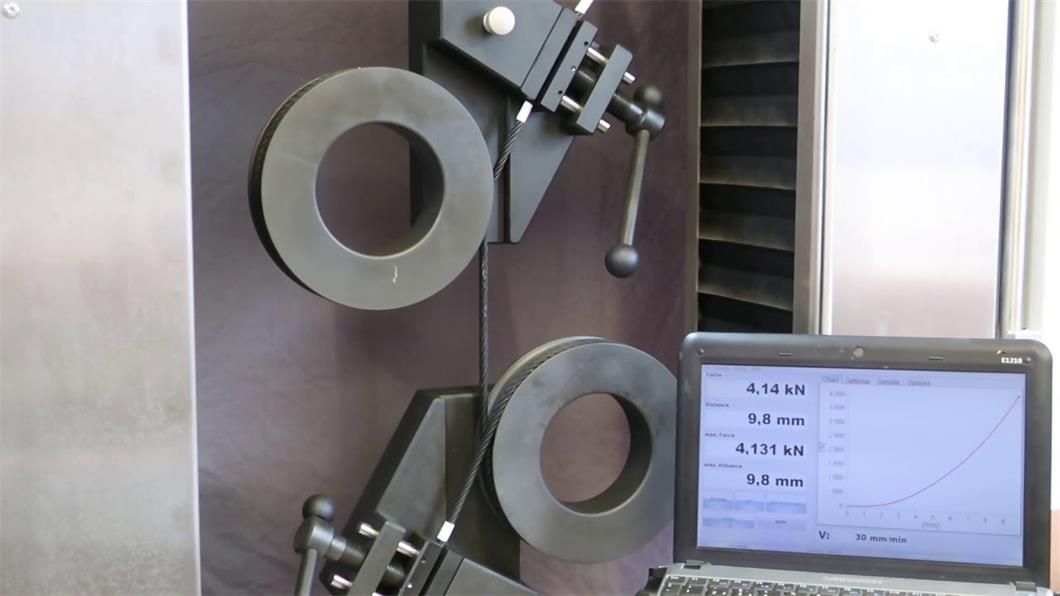

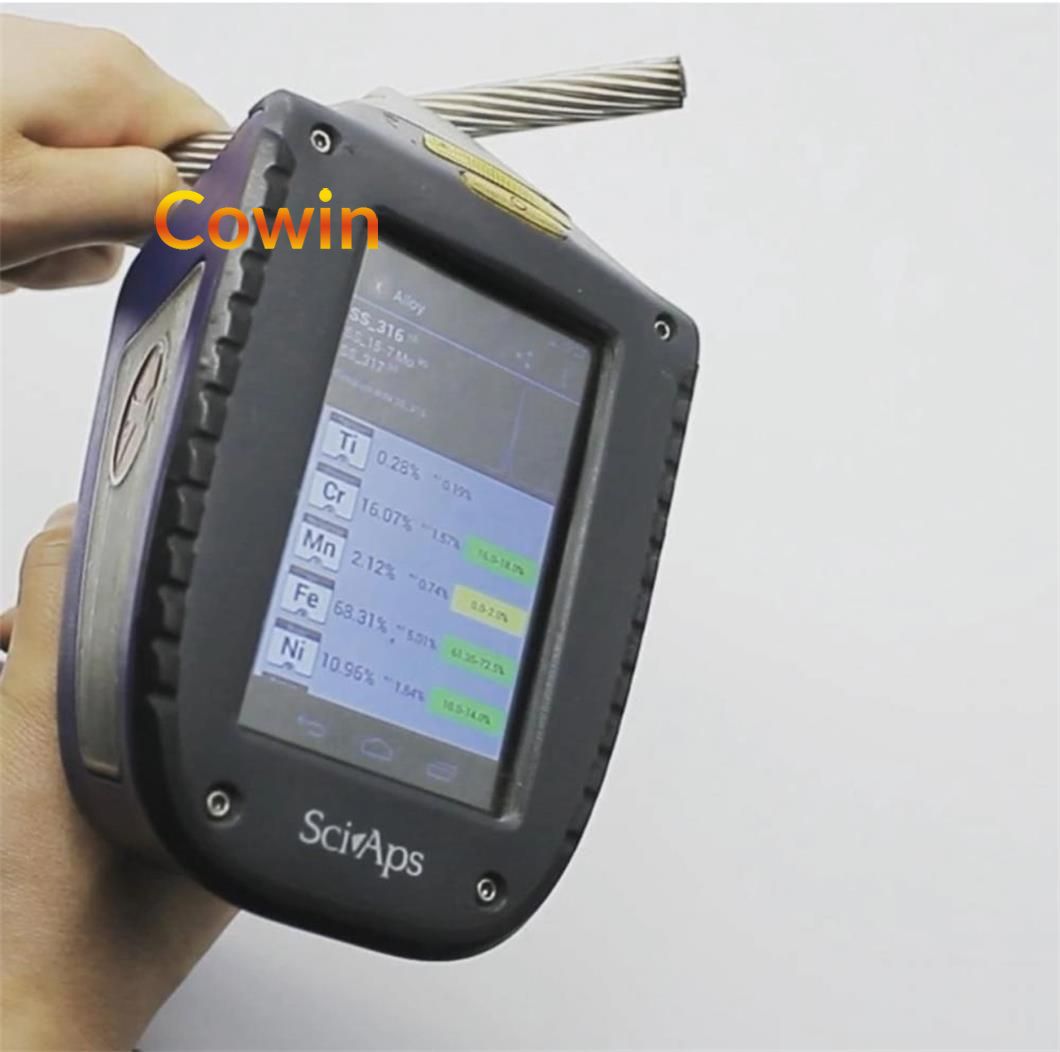

2.Test diameter, chemical composition and breaking load by our mill, supply mill test report
3..Accept the third party inspection ( SGS,TUV, or other institution designated by clients

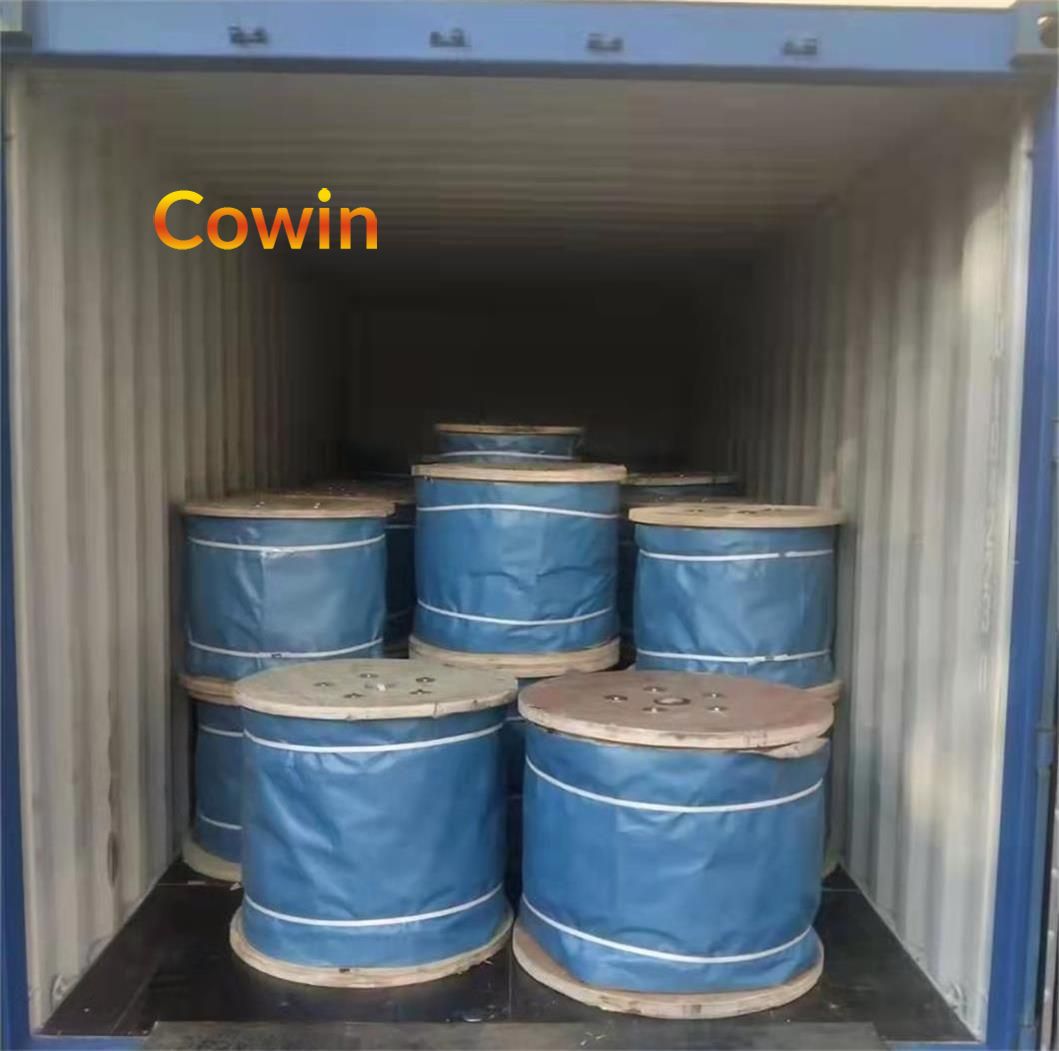

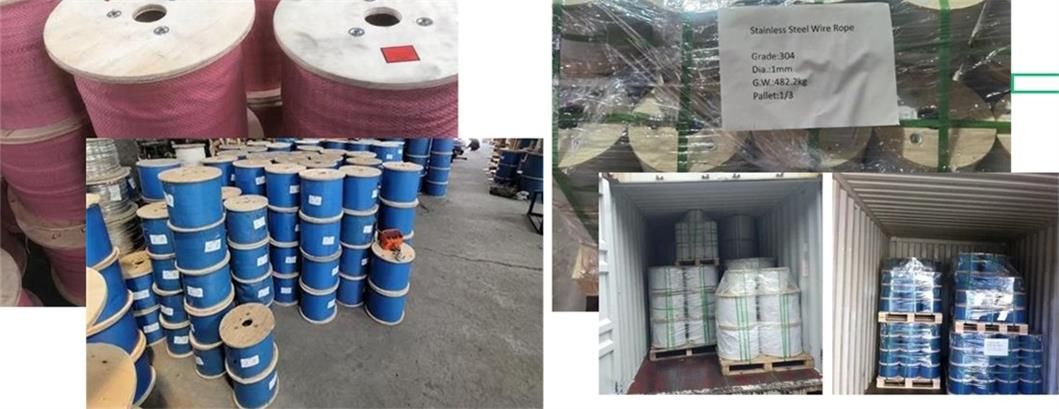

IV).Package and Load
V).How to Handle complains
1. before delivery, we do strict inspection and test to avoid unquality goods out from our factory
2. if quality problems occur when customer receive the goods
firstly, we will check where the quality happen, it is in our factory, in the transporation, or the wrong operation by client
secondly, if happend in our factory, we will compensate all the lost , if in the transporation, we will strengthen our package in the next shipment, and compenate the loss of client, and if by clients' worng operation,we will give our right operation suggestion and also give our adequate compensation in the next order
In one word, we try to do every process well, avoid any problem occurs, and don't let our clients suffer any loss
