19x7 Non-Rotation Stainless Steel Wire Rope ( AISI 304, 316)
The 19X7 class wire rope is recommended for hoisting unguided loads with a single part line. It is not intended to be used with a swivel.

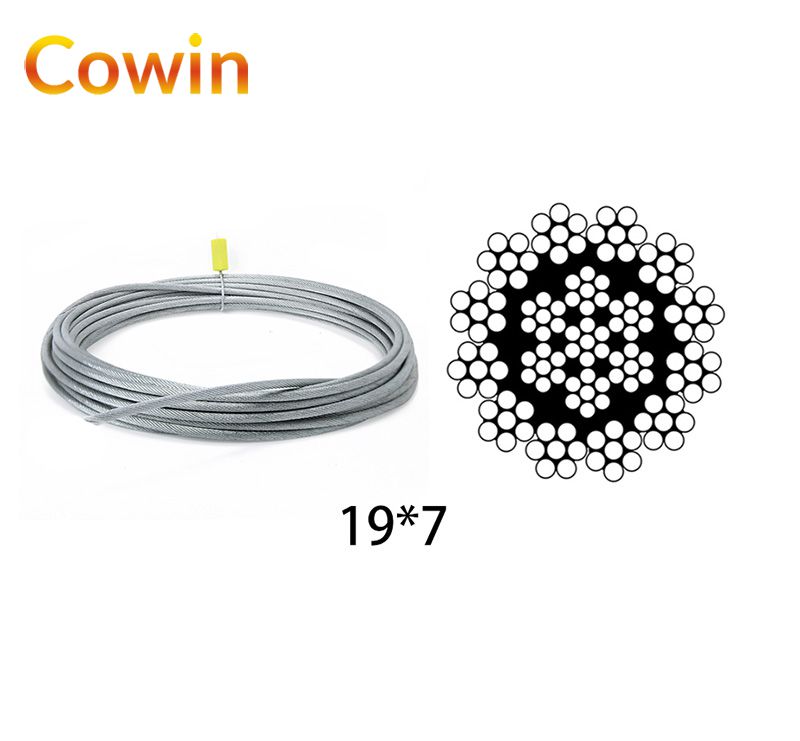

The 19X7 class wire rope offers excellent rotation-resistance by laying 6 strands around a core in one direction and 12 strands around the first set of strands in the opposite direction. When under tension, the opposing rotational forces work in tandem to create excellent rotation resistance.
I).Basic Information
19x7 Non Rotation Stainlesss Steel Wire Rope (AISI304,316)
Dia: 3.0mm-26mm
Lay: RHLL, LHLL, RHOL, LHOL
Breaking Load
| Diameter | Approx Weight | Min Breaking Load (KN) | ||
| mm | Kg/100m | 1570Mpa | 1770 Mpa | 1960 Mpa |
| 3.0 | 3.7 | 5.2 | 5.8 | |
| 4.0 | 6.6 | 9.3 | 10.3 | |
| 5.0 | 10.4 | 12.9 | 14.5 | 16.1 |
| 6.0 | 14.9 | 18.6 | 20.9 | 23.2 |
| 8.0 | 26.5 | 33.0 | 37.2 | 41.2 |
| 10.0 | 41.4 | 51.6 | 58.1 | 64.4 |
| 12.0 | 59.6 | 74.3 | 83.7 | |
| 13.0 | 70.0 | 87.1 | 98.2 | |
| 14.0 | 81.2 | 101 | ||
| 16.0 | 106.0 | 132 | ||
| 18.0 | 134 | 167 | ||
| 20.0 | 166 | 206 | ||
| 22.0 | 200 | 250 | ||
| 24.0 | 238 | 297 | ||
| 26.0 | 280 | 349 | ||
II).How to Produce it

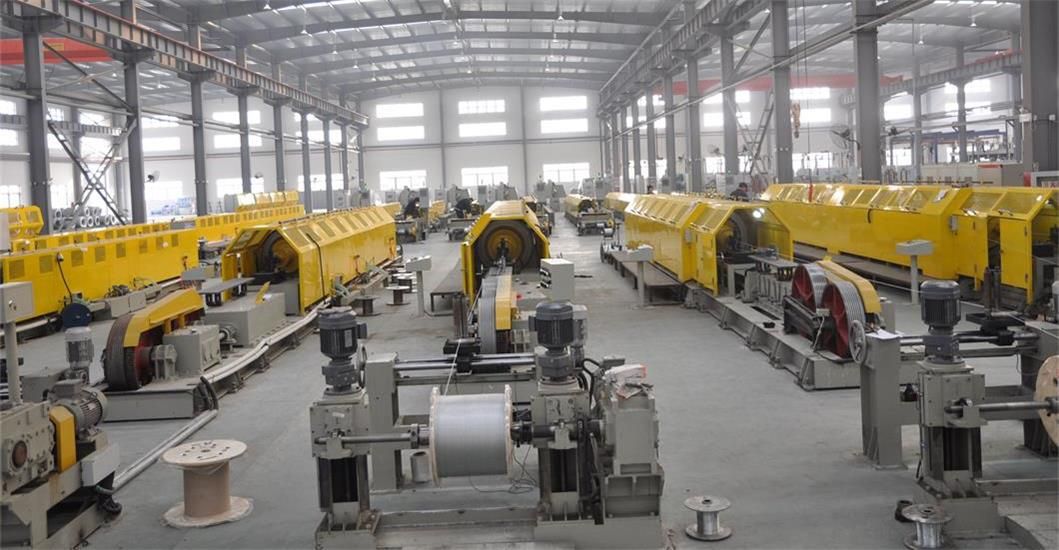

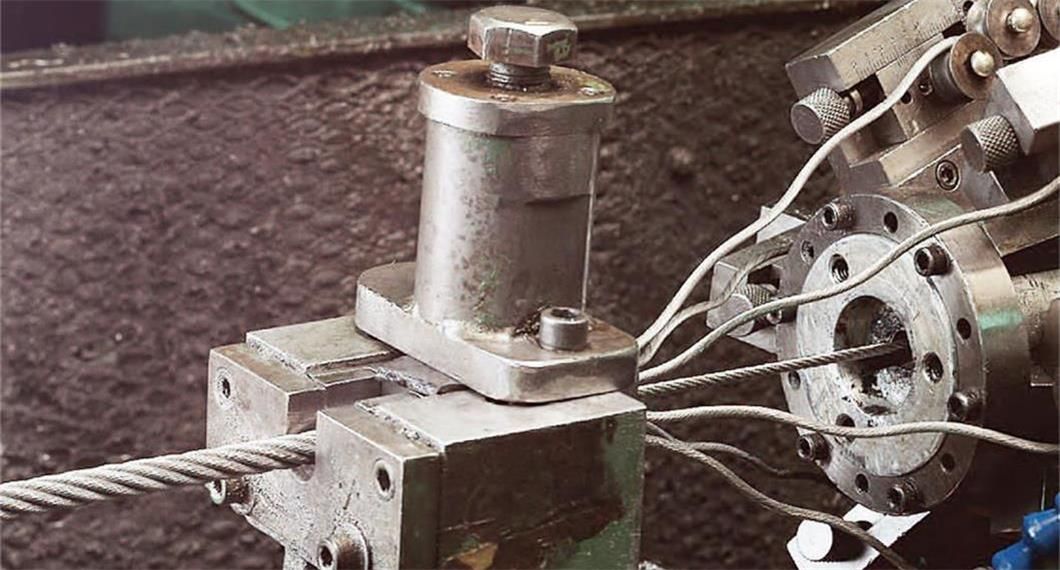

1. Drawing Wire------------------2.get the right size wire for rope----------------3.Twist the wire to get strand-----------4.Twist the strand to get the wire rope--------------.5 winding the wire rope-------------6.Pack them
III).How to make sure the quality
1.Standardized production operation

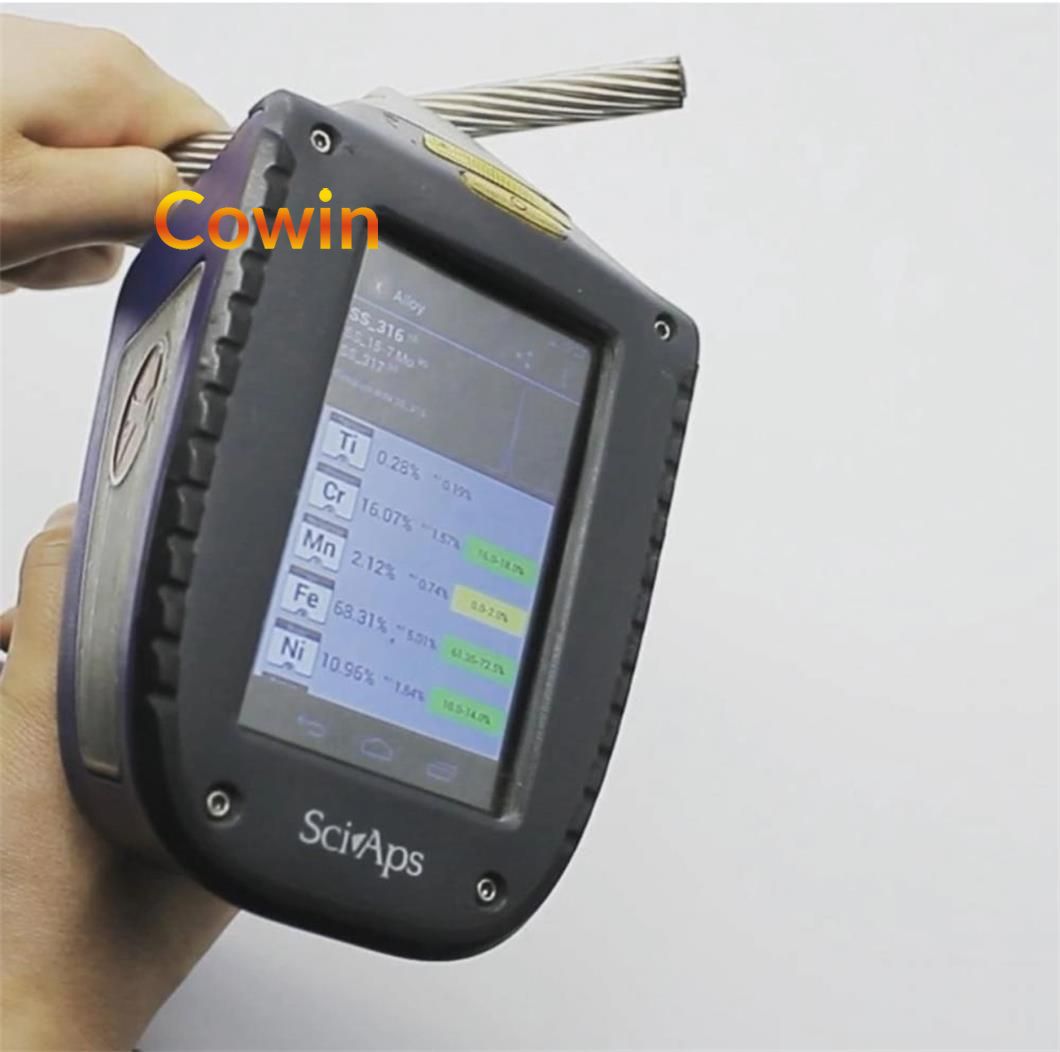

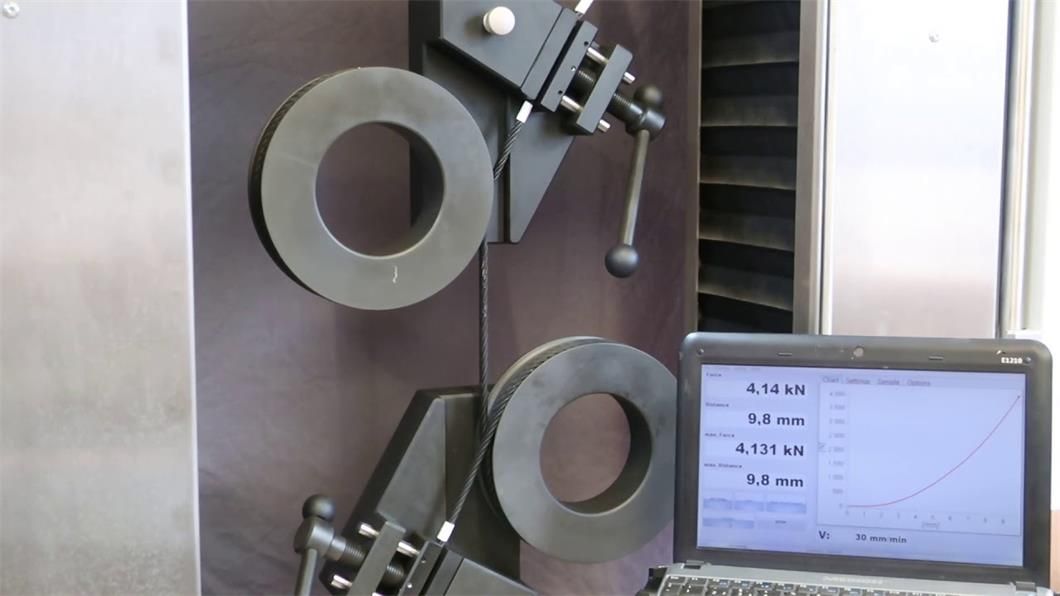

2.Test diameter, chemical composition and breaking load by our mill, supply mill test report
3..Accept the third party inspection ( SGS,TUV, or other institution designated by clients

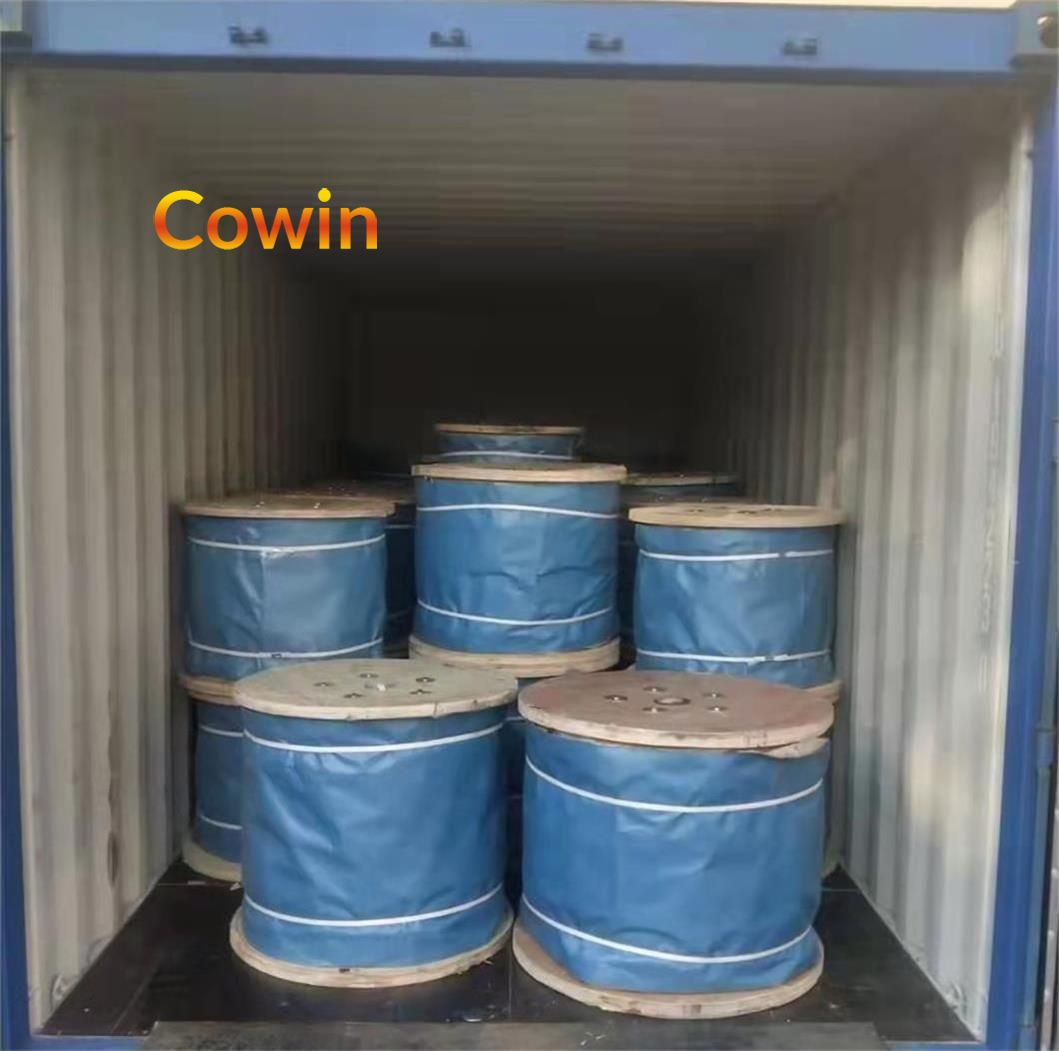

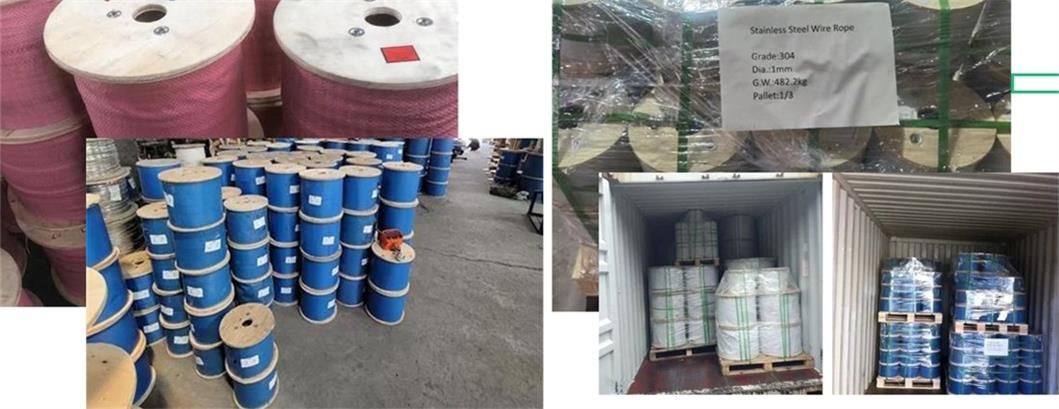

IV).Package and Load
V).How to Handle complains
1. before delivery, we do strict inspection and test to avoid unquality goods out from our factory
2. if quality problems occur when customer receive the goods
firstly, we will check where the quality happen, it is in our factory, in the transporation, or the wrong operation by client
secondly, if happend in our factory, we will compensate all the lost , if in the transporation, we will strengthen our package in the next shipment, and compenate the loss of client, and if by clients' worng operation,we will give our right operation suggestion and also give our adequate compensation in the next order
In one word, we try to do every process well, avoid any problem occurs, and don't let our clients suffer any loss
