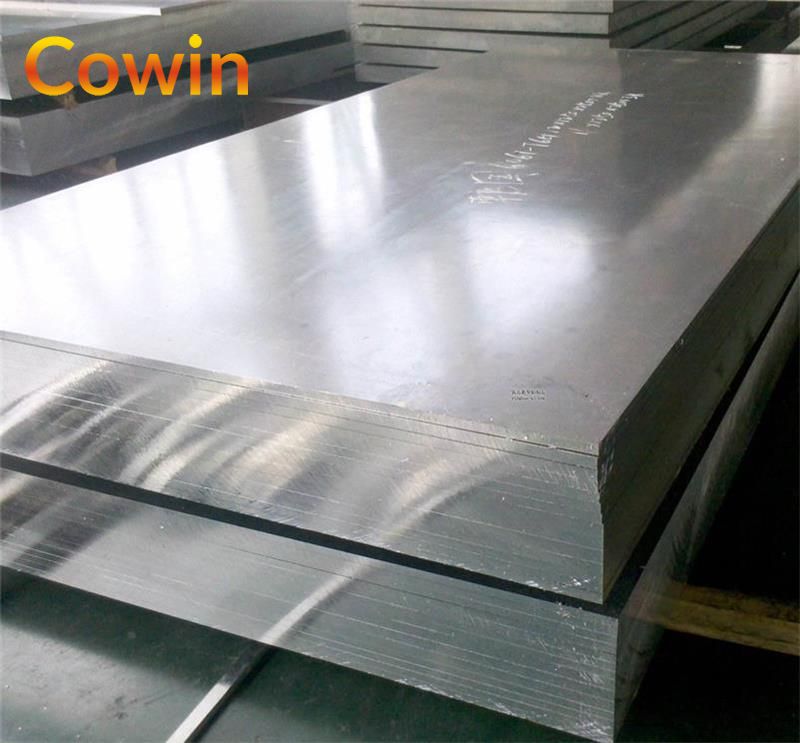

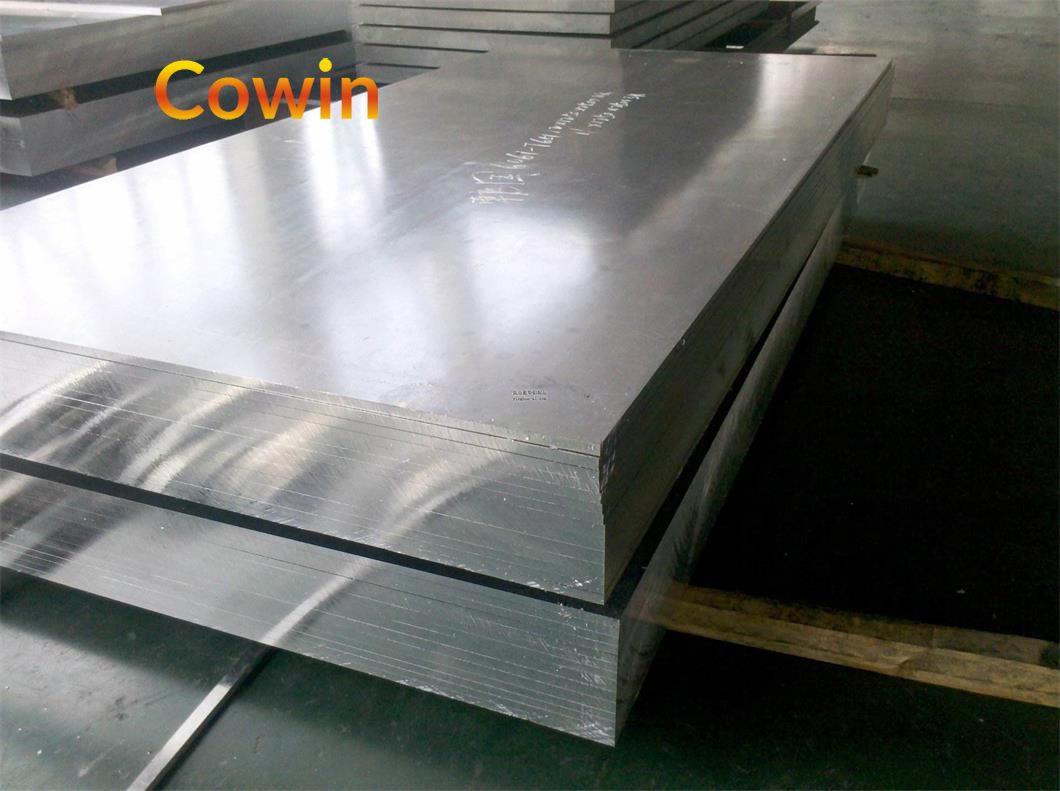

5083 Aluminum Alloy Plate Sheet
5083 Aluminum Plate Sheet
. Resonable pirce
. Free sample for quality check
. Inspection in production and before shipment to guarantee consistent quality
. All plywood box package to protect the goods no damaged in the transportation
5083 aluminum alloy is a high magnesium alloy with good strength, corrosion resistance, and machinability among non heat-treatable alloys. The surface is beautiful after anodizing treatment. Arc welding performance is good. The main alloying element in 5083 alloy is magnesium, which has good corrosion resistance, weldability, and moderate strength. The excellent corrosion resistance of 5083 alloy makes it widely used in maritime applications such as ships, as well as in automobiles, aircraft welding parts, subway light rail, pressure vessels that require strict fire protection (such as liquid tank cars, refrigerated trucks, refrigerated containers), refrigeration devices, television towers, drilling equipment, transportation equipment, missile parts, armor, etc.
Size
| 5083 | Temper | Thickness |
| O | >0.20~200.00mm | |
| H111 | >0.20~200.00mm | |
| H12, H22, H32, H14, H24, H34 | >0.20~6.00mm | |
| H16, H26, H36 | >0.20~4.00mm | |
| H116, H321 | >1.50~80.00mm | |
| H112 | >6.00~120.00mm | |
| F | >4.50~150.00mm |
Chemical Composition(%)
| 5083 | Si | Fe | Cu | Mn | Zn | Cr | Ti | Mg | Al |
| 0.40 | 0.40 | 0.10 | 0.40~1.0 | 0.25 | 0.05~0.25 | 0.15 | 4.0~4.9 | Balance |

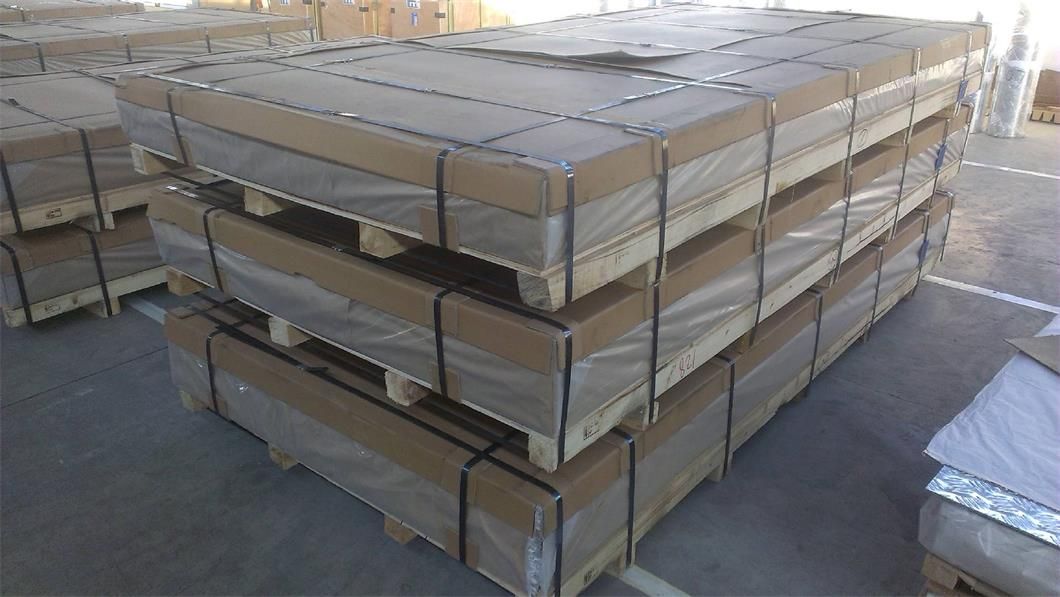

Package and Shipping
Our Advantage
Optimize and integrate resources to supply cost-effective products
Help customers to inspect and guarantte quality
Help customers to reduce their cost ( traveling, time, energy,etc)
If any quality problem when receiving goods, we compensate with no any cause
