3003 H18 Aluminum Sheet with PVC Protective Tape
3003 H18 Aluminum Sheet
. Resonable pirce
. Free sample for quality check
. Inspection in production and before shipment to guarantee consistent quality
. All plywood box package to protect the goods no damaged in the transportation
3003 is an AL-Mn alloy, which is the most widely used anti rust aluminum. This alloy has low strength (slightly higher than industrial pure aluminum) and cannot be strengthened through heat treatment. Therefore, the use of cold working methods to improve its mechanical properties: high plasticity in the annealed state, good plasticity in semi cold work hardening, low plasticity in cold work hardening, good corrosion resistance, good weldability, and poor machinability. Mainly used for low load parts that require high plasticity and good weldability, working in liquid or gas media, such as fuel tanks, gasoline or lubricating oil ducts, various liquid containers, and other low load parts made by deep drawing: using wire for rivets
Size
| 3003 | Temper | Thickness |
| H111 | >0.20~50.00mm | |
| H12, H22, H14, H24 | >0.20~6.00mm | |
| H16, H26 | >0.20~4.00mm | |
| H18, H28, H19 | >0.20~3.00mm | |
| H112 | >4.50~80.00mm | |
| F | >4.50~150.00mm |
Chemical Composition(%)
| 3003 | Si | Fe | Cu | Mn | Zn | Al |
| 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | 0.1 | Balance |

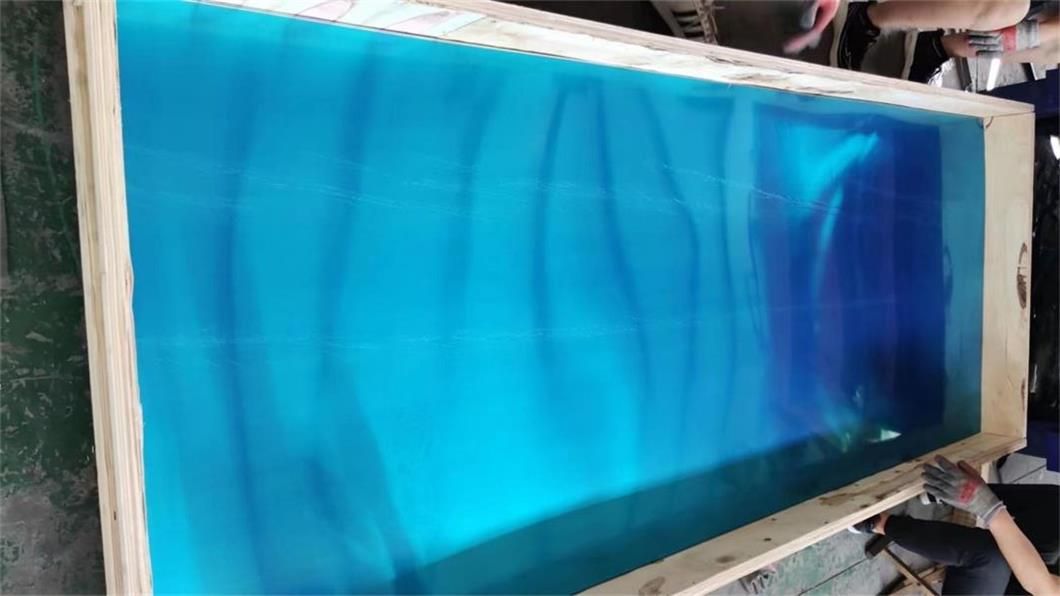

Package and Shipping

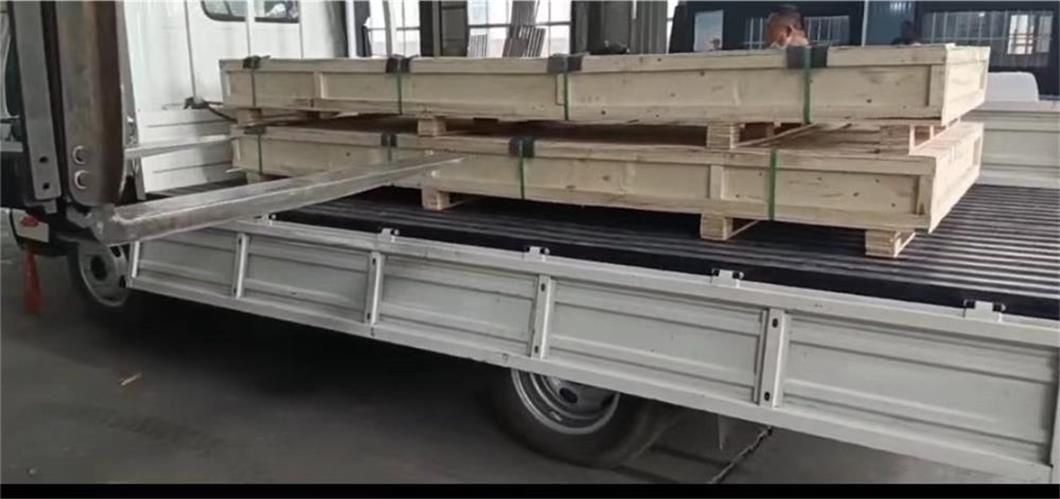

Real Delivery Scenario to Qingdao Port for Shipment

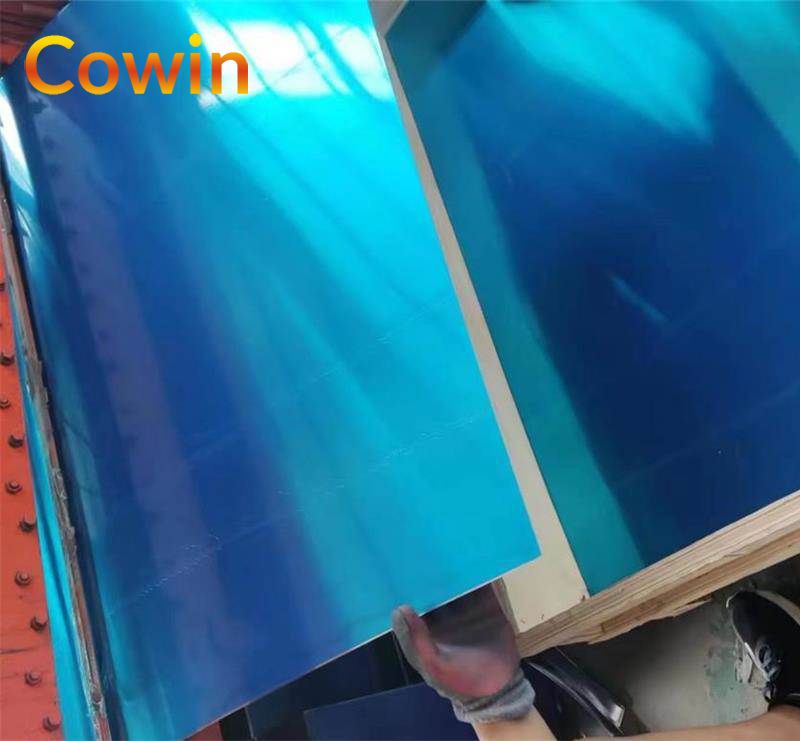

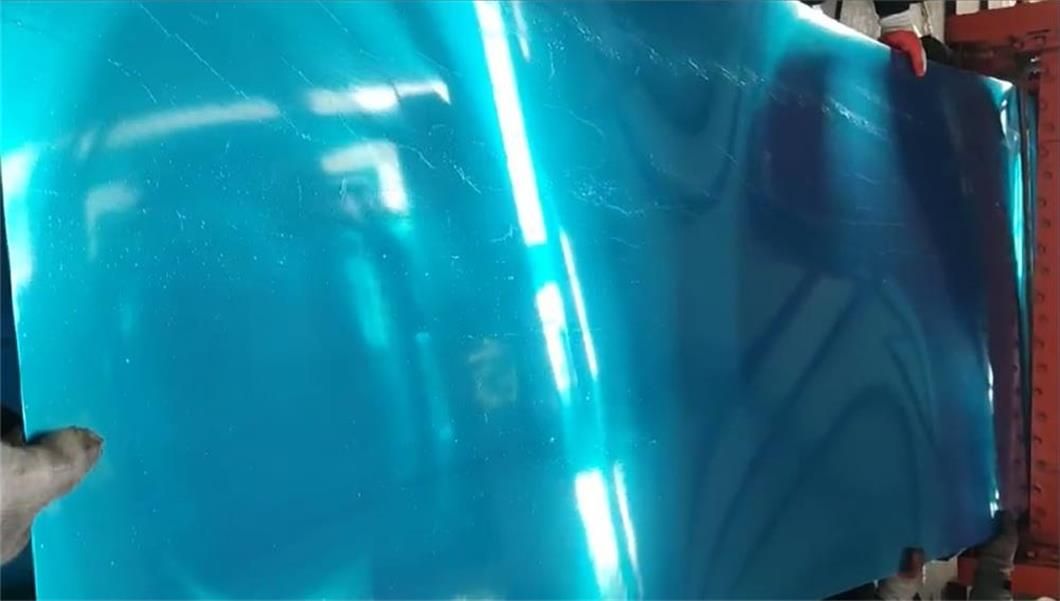

3003 H18 Aluminum Sheet
Size 0.9mm x 1200mm x 3000mm
Our Advantage
Optimize and integrate resources to supply cost-effective products
Help customers to inspect and guarantte quality
Help customers to reduce their cost ( traveling, time, energy,etc)
If any quality problem when receiving goods, we compensate with no any cause
